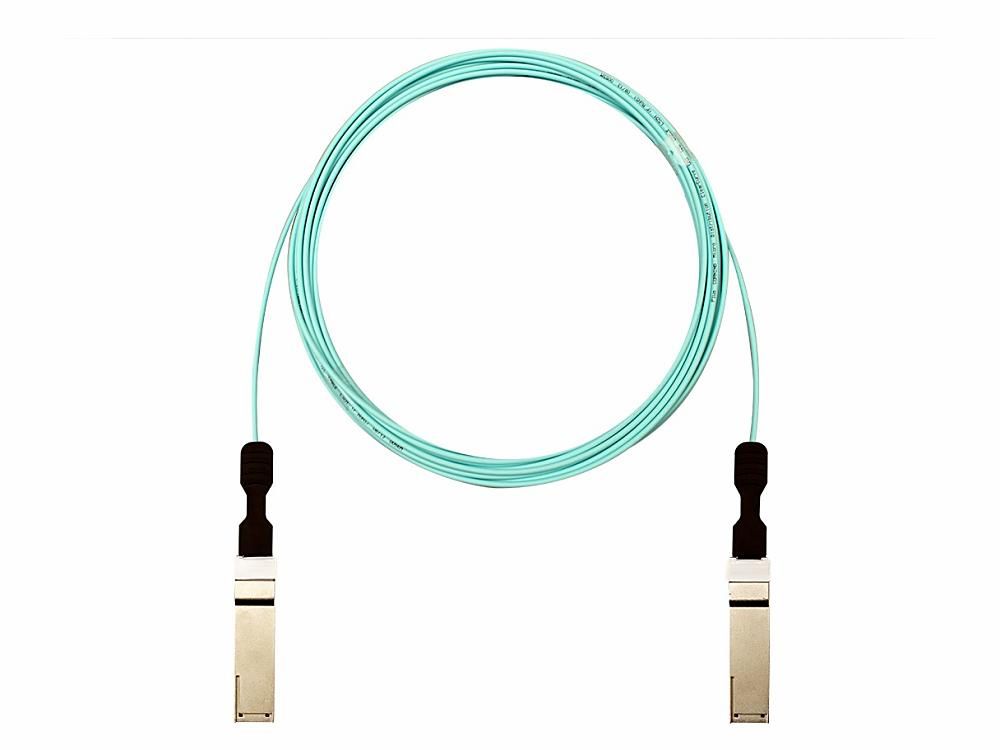

100-Gbps OSFP28 Active Optical Cable
Feature
- Compliant with 100GBASE-SR4 and CAUI-4 specification per IEEE 802.3bm
- Compliant to SFF-8665 (QSFP28 Solution) Revision 1.8
- Supports 100 Gbps data rate links up to 70m/100 m via OM3/OM4, respectively.
- Low power consumption of max 2.5W
- Hot pluggable electrical interface
- Using standard 12/8 lane optical fiber with 3-mm round cable
- 0 to 70°C case temperature operating range
- RoHS-6 Compliant (lead-free)
Applications
- Ethernet for 100GBASE-SR4
- InfiniBand EDR, FDR, & QDR
- HPC Interconnects
- Proprietary Interconnections
Ordering Information
| P/N |
Meters |
P/N |
Meters |
| C04025QAML001 |
1m |
C04025QAML015 |
15m |
| C04025QAML003 |
3m |
C04025QAML020 |
20m |
| C04025QAML005 |
5m |
C04025QAML025 |
25m |
| C04025QAML007 |
7m |
C04025QAML030 |
30m |
| C04025QAML010 |
10m |
C04025QAMLxxx |
0~100m* |
